激光软件
当前位置:首页>>产品中心>>激光软件
OXALIS-laser 软件 Therm Opt

  法国Oxalis-Laser公司的Commod Pro, ThermOpt, Spir激光软件用于对各类激光系统进行专业的物理光学模拟计算、热效应分析以及多程放大分析,是目前超专业、超至强、超全面的激光模拟软件。信欧光电作为其在中国区的授权代理商,致力于在中国市场推广这款优良的专业激光模拟软件,与广大中国用户共同发现并见证激光的丰富多彩。


  • 产品介绍
  • 性能参数
  • 规格尺寸
  • 资料下载



  ThermOpt

  General features and applications

  ThermOpt calculates the wavefront distortion and polarization changes of a beam propagating through heated active medium; this software is linked to I-DEAS, a software from SDRC (I-DEAS generates the temperature, strain and stress distribution of the active medium). The use of other software for thermal and mechanical calculations required a format conversion of the outputs file to be used in ThermOpt. ThermOpt also creates phase and birefringence masks. This masks can be read and used in Commod Pro. Commod Pro takes into account thermal lensing and depolarisation induced effects.

  Calculation of the wavefront distortion and polarization changes are performed using ray-tracing method.

  Depolarisation : transmission through crossed analyser/polarizer

  Phase : local phase difference between the two directions of the beam polarisation

  Outputs

  - Mask of phase

  - Mask of birefringence

  I/O characteristics

  Operating system

  - Windows 98 / NT / 2000 / XP / Vista / Seven

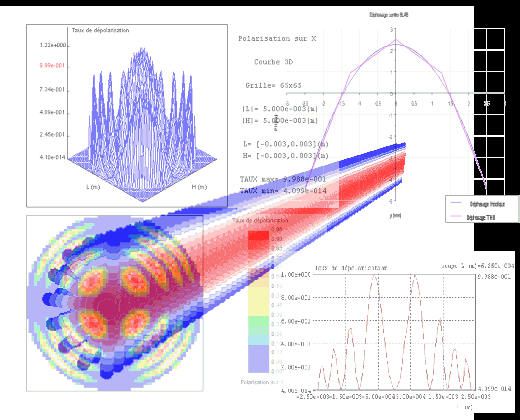

  ThermOpt Interface

  ThermOpt interface allows to display inputs parameters and 3D results of wavefront distortion for instance.



oxalis-laser.com

  ThermOpt and Commod Pro coupling

  Representation of mask of phase calculated by ThermOpt througth a cylinder and used in Commod Pro.
